Mounting Rod 250mm for Swivel Hanger

Mounting Rod 250mm for Swivel Hanger – Secure Suspension for CD 60 Profiles

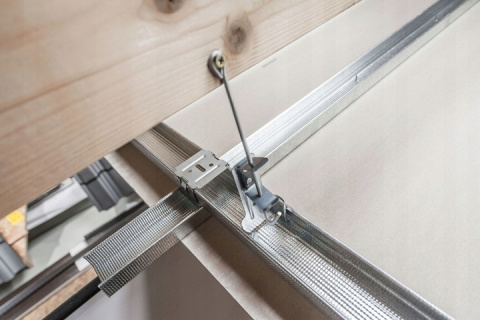

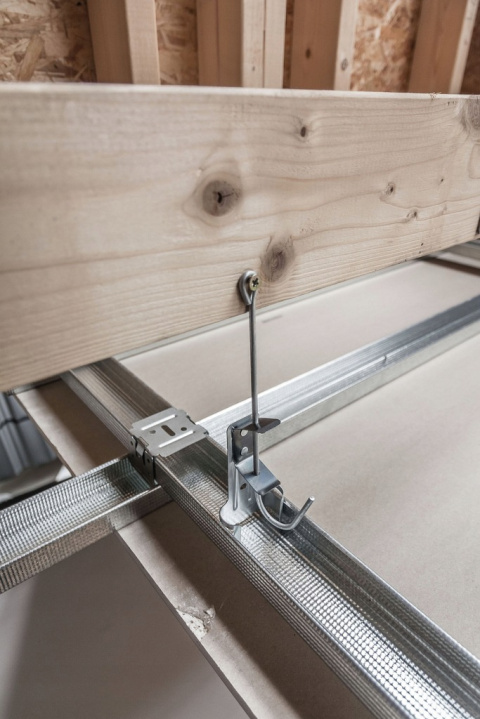

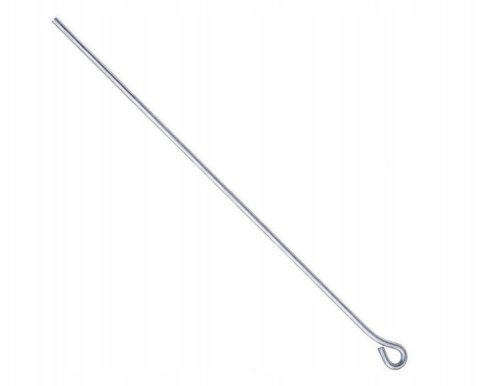

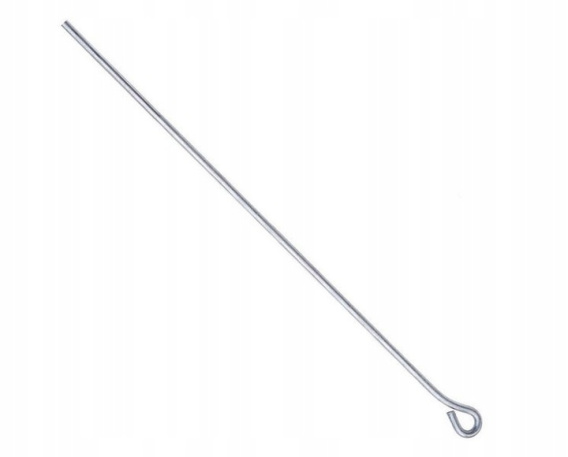

TheMounting Rod is a high-strength steel rod, designed as an intermediate element for securing suspended ceiling structures. It is used for adjusting height differences between the structural ceiling and the suspended ceiling framework, ensuring a precise and stable installation when combined with swivel hangers (WSO elements).

Key Features:

✔ High Durability & Load Capacity: Manufactured from reinforced DX51D steel, ensuring long-lasting stability and strength.
✔ Fire Resistance: Rated Euroclass A1, meeting fire safety regulations for construction projects.
✔ Corrosion Protection: Hot-dip galvanized coating (Z100 – 7 µm) prevents rust and material degradation.
✔ Height Adjustment Functionality: Allows precise regulation of ceiling height when installing suspended ceiling frameworks.

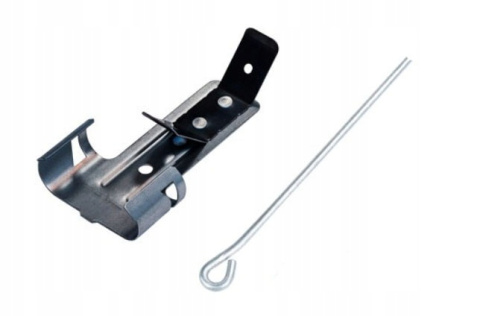

✔ Compatible with CD 60 Profiles: Works seamlessly with swivel hangers and suspended ceiling support systems.

Technical Specifications:

• Material: DX51D Steel
• Length: 250mm
• Diameter: 4mm
• Coating: Hot-dip galvanized (Z100 – 7 µm)
• Color: White
• Durability Class: B

Applications:

• Used in suspended ceiling systems to regulate the height difference between the structural and suspended ceiling.
• Works as a connecting element for swivel hangers and CD 60 profiles.
• Provides stable suspension support for drywall ceiling frameworks.
• Suitable for fire-rated ceiling installations due to Euroclass A1 fire resistance.

The Mounting Rod is an essential component for precision-adjusted suspended ceiling systems, ensuring secure, durable, and fire-resistant installation.
