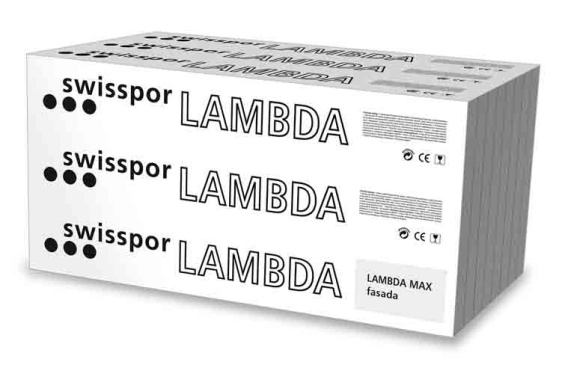

Swisspor Lambda Max Fasada 031 12cm (2,5 m2 pack)

Swisspor Lambda Max Fasada 031 is a premium graphite styrofoam with outstanding thermal conductivity (λ = 0.031 W/mK). It is designed for a wide range of insulation applications, including facades, sloped roofs, and areas prone to thermal bridging. Known for its durability and excellent insulating properties, this styrofoam is a top choice for energy-efficient and passive buildings.

Key Features:

• Thermal Conductivity (λ): 0.031 W/mK, providing superior energy efficiency.
• Material Composition: High-quality graphite-enhanced polystyrene.
• Density: Approximately 13.5–14 kg/m³, ensuring robust performance.
• Standard Thicknesses: Includes 2, 4, 5, 6, 10, 12, 15, and 20 cm, with other sizes available upon request.
• Durability: Designed for long-term performance, even in demanding environments.

Applications:

1. Facade Insulation:

   • Ideal for external walls where thinner panels (e.g., 10–15 cm) are required to meet architectural specifications.

2. Roof Insulation:

   • Suitable for sloped roofs, between and under rafters, and poured slopes.

3. Thermal Bridge Prevention:

   • Perfect for insulating lintels, jambs, wall crowns, and other areas at risk of thermal bridging.

4. Floor Insulation:

   • Can be used on joist floors or other load-bearing surfaces

Guidelines for Use:

1. Temperature Conditions:

   • Ensure air, substrate, and material temperatures are between +5°C and +25°C during installation.

2. UV Protection:

   • Protect boards from direct sunlight using scaffold mesh or tarpaulins.

3. Doweling and Reinforcement:

   • Use dowels with caps for enhanced security and to prevent thermal bridging.
   • Pair with 160 g/m² fiberglass mesh (4×4 mm grid, TUV certified) for reinforced applications.

4. Adhesive Recommendations:

   • Use fiber-reinforced adhesive for optimal adhesion. Apply along the edges and in spots to cover approximately 60% of the board’s surface.

Performance Benefits:

• Exceptional Insulation: Lowest λ-value for improved thermal performance.
• Versatile Applications: Suitable for facades, roofs, and specialized insulation needs.
• Long-Lasting Durability: High density ensures lasting performance and resistance to environmental factors.

Swisspor Lambda Max Fasada 031 is a premium insulation solution for projects demanding the highest levels of energy efficiency and durability. It’s an excellent choice for professionals aiming for quality and reliability in construction and renovation projects.
